200T Power Press Machine
200T Ordinary Type（semi-closed) Single Motors Driven Press Machine.
Product Structure
Product Introduce

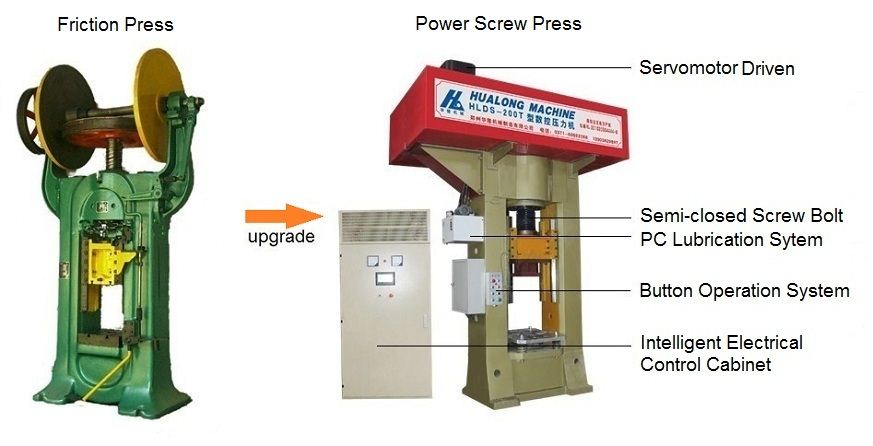

As the upgrade alternatives to friction press,Haloong HLDS series servo power screw press machine were Directly driven by servomotor. Energy loss only during blowing and forming whether non-consumption when material feeding,pick out bricks, clean die. One button operation for anyone could get it at such short time.Fully automatic digitization simulate human blow process.
Product Features:
1.Type:Ordinary Type（semi-closed), Single Motor Driven;
2.Apply To Refractory：Checker Brick, Special Shaped Brick, Standard Brick etc.;
3.Apply To Forging: Different forged parts in auto and motorcycle, Mining machinery, Metallurgical machinery, Electric industry, Petrochemical industry etc.;
4.Optional Device: Automatic Spray Release Agent,Safety Raster,Several Bricks Once Blow;
5.Optional Supporting:Automatic Feeding,Automatic Unloading;
6.Compare with Friction Press:Power Saving 60%,Labor Saving 1,Qualification Rate 100%;
7.Warranty:12 Months.
Static Pressure Type(fully closed)
NONE;Product Parameter
HLDS-200T——Refractory press
|
Model HLDS-200T |
Nominal pressure (KN):2000 | |
|---|---|---|
| Permissible capacity (KN):4000 | ||
| Stroke length (mm):650 | Stroke No.s(min-1)：30 | |
| Max shut height (mm):1000 | Motor(KW):22 | |
| Worktable size (mm):900*660 | ||
| Overall size （L*W*H） (mm):2600*1600*4481 | ||
HLDS-200F——Refractory press
|
Model HLDS-200F |
Nominal Pressure(KN):2000 | |
|---|---|---|
| Permissible Capacity(KN):3200 | ||
| Stroke Length(mm):320 | Stroke No.s(per minute)：30 | |
| Min. Shut Height(mm):300 |
Kinetic Energy (KJ):17 |
|
| Worktable Plate Thickness(mm):120 | ||
| Worktable Size FB*LR (mm):600X600 | ||

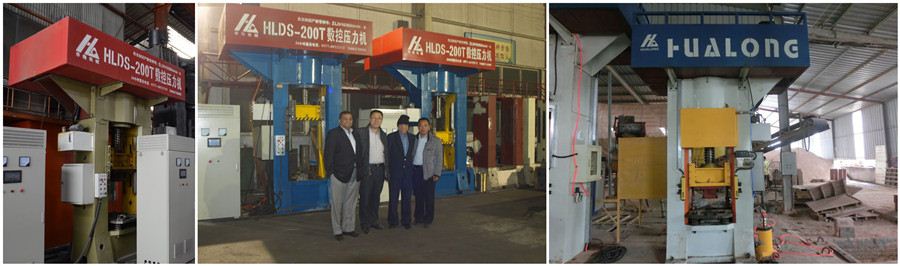

Customer Site
