Product inroduce:
A electric screw press is a type of press machine in which the ram is driven up and down by a screw,which have the advantages of small volume,short of transmission chain,easy operation.

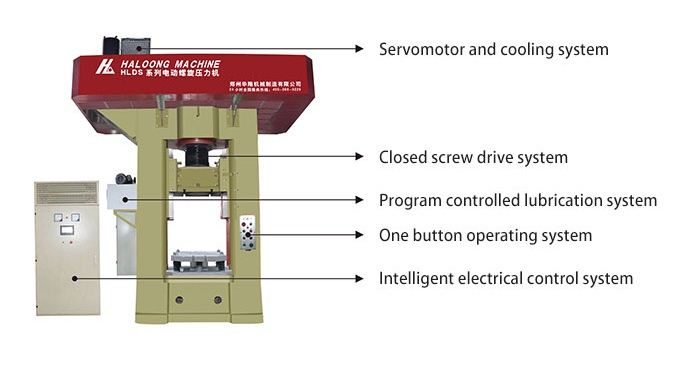

Cnc electric screw press is a new technology type of electric screw press ,which were driven by permanent magnet synchronous servo motor,and consist of mechanical pats such as framework, flywheel, screw nut, the slider, lubricating mechanism, braking mechanism and electric parts such as servo motor, electric control cabinet, operating button station.
This automatic electric screw press is a multiple functional fire bricks molding machine.
It is able to produce concrete bricks, high alumina bricks, high alumina corundum bricks, special shap bricks, magnesia bricks, SiC bricks, acid resistance bricks, acid proof bricks, special shapped bricks, carbon bricks, carbon graphite bricks, magnesite carbon bricks, alumina carbon bricks, silicon carbide bricks, diatomite bricks, moler bricks, zircon corundum bricks, alkali resistant bricks, cyanite bricks, magnesite calcium carbon bricks, magnesia alumina bricks, magnesite chromite bricks, monolithic refractory bricks, refractory nozzle, zircon mollite bricks, chemically bonded magnesite chrome bricks, magnesite spinel bricks, mullite bricks, multi purpose refractories, superduty bricks, high duty bricks and etc.
Apply to forging industry:
Products List
- Electric Screw Press
- HLDS-30T Electric Screw Press
- HLDS-60T Electric Screw Press
- HLDS-200T Electric Screw Press
- HLDS-315T Electric Screw Press
- HLDS-400T Electric Screw Press
- HLDS-630T Electric Screw Press
- HLDS-800T Electric Screw Press
- HLDS-1000T Electric Screw Press
- HLDS-1200T Electric Screw Press
- HLDS-1600T Electric Screw Press
Video
News
400T Electric Screw Press
400T Electric Screw Press
Good product consistency and high qualified rate. Easy to operate, strong overloading ability;
multiple safety protection, no bottom dead center;
Short transmission chain;simple structure, easy to maintain;
fully automatic molding then realize unmanned production;
free transmission between high & low speed and floating blow in single-stroke.
E-Mail:haloong@haloong.com
Description
Product inroduce:
A electric screw press is a type of press machine in which the ram is driven up and down by a screw,which have the advantages of small volume,short of transmission chain,easy operation.
Cnc electric screw press is a new technology type of electric screw press ,which were driven by permanent magnet synchronous servo motor,and consist of mechanical pats such as framework, flywheel, screw nut, the slider, lubricating mechanism, braking mechanism and electric parts such as servo motor, electric control cabinet, operating button station.
Apply to refractory industry:
This automatic electric screw press is a multiple functional fire bricks molding machine.
It is able to produce concrete bricks, high alumina bricks, high alumina corundum bricks, special shap bricks, magnesia bricks, SiC bricks, acid resistance bricks, acid proof bricks, special shapped bricks, carbon bricks, carbon graphite bricks, magnesite carbon bricks, alumina carbon bricks, silicon carbide bricks, diatomite bricks, moler bricks, zircon corundum bricks, alkali resistant bricks, cyanite bricks, magnesite calcium carbon bricks, magnesia alumina bricks, magnesite chromite bricks, monolithic refractory bricks, refractory nozzle, zircon mollite bricks, chemically bonded magnesite chrome bricks, magnesite spinel bricks, mullite bricks, multi purpose refractories, superduty bricks, high duty bricks and etc.
Apply to forging industry:
Product parameter：
| Model |
nominal pressure (KN/T) |
max. pressure (KN) |
slide stroke (mm) |
stroke No. (mm) |
die set height (mm) |
workatable size (mm) |
overall size (mm) |
motor (Kw) |
weight (T) |
|---|---|---|---|---|---|---|---|---|---|
| HLDS-30T | 300/30 | 600 | 300 | 40 | 670 | 550*550 | 1420*750*2136 | 4.2 | 1.2 |
| HLDS-60T | 600/60 | 1200 | 380 | 36 | 665 | 780*520 | 1550*800*2688 | 5.5 | 3.5 |
| HLDS-200B | 2000/200 | 4000 | 650 | 30 | 1000 | 900*660 | 2600*1600*4481 | 22 | 8.5 |
| HLDS-315B | 3150/315 | 6300 | 650 | 28 | 1100 | 1200×880 | 3150*2100*5328 | 37 | 21.5 |
| HLDS-400B | 4000/400 | 8000 | 700 | 28 | 1250 | 1200*1050 | 3300*2200*5675 | 52.3 | 28 |
| HLDS-630B | 6300/630 | 12000 | 750 | 26 | 1440 | 1250x1050 | 4000*2640*6432 | 84 | 53 |
| HLDS-800B | 8000/800 | 16000 | 750 | 26 | 1440 | 1300*1050 | 5000*2640*6545 | 52.3*2 | 57 |
| HLDS-1000T/B | 10000/1000 | 20000 | 700 | 22 | 1255 | 1350x1100 | 5600*2640*6620 | 78*2 | 75 |
| HLDS-1200B | 12000/1200 | 24000 | 700 | 22 | 1255 | 1450x1100 | 5600*2640*6620 | 84*2 | 78 |
| HLDS-1600B | 16000/1600 | 32000 | 800 | 20 | 1370 | 1800x1460 | 6200*3300*7305 | 136*2 | 118 |
| HLDS-2000B | 20000/2000 | 40000 | 800 | 18 | 1370 | 1900x1460 | 6500*3500*7600 | 160*2 | 162 |
